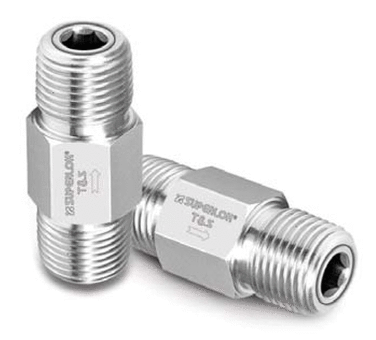

SOACV Adjustable Check Valves
Adjustable Check Valve – SOACV Adjustable Check Valves
The Adjustable Check Valve is a precision-engineered flow control valve designed to prevent backflow in hydraulic, pneumatic, and industrial piping systems. Featuring MNPT threads, it provides secure, high-pressure sealing for compressed air, oil, gas, and water applications. Constructed from 316 stainless steel, it withstands up to 6,000 psi while offering adjustable cracking pressure for optimized system efficiency. Commonly used in oil & gas, chemical processing, and water treatment, this durable check valve ensures smooth, controlled fluid movement with minimal maintenance.
Browse all Adjustable Check Valves below to find the best option for your application.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
| Back Pressure at 70 (20 ?C) Temperature | 206bar, 3000psig |
|---|---|
| Cv Coefficient | 0.35 |
| End Type | Male National Pipe Thread (MNPT) |
| End Type 2 | Male National Pipe Thread (MNPT) |
| Inch/Metric | Inch |
| Inlet | 1/4mm |
| Nominal Cracking Pressure | 0.2 to 41.3bar, 3 to 600psig |
| Operating Pressure [Min] | 206bar, 3000psig |
| Outlet | 1/4mm |
| Superlok Part Type | Check Valve |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190?C, -10 to 375?F |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121?C, -10 to 250?F |
SOACV-M-4N-C SOACV Adjustable Check Valves
SOACV1-M-4N-A SOACV Adjustable Check Valves
SOACV1-M-4N-B SOACV Adjustable Check Valves
SOACV1-M-4N-D SOACV Adjustable Check Valves
