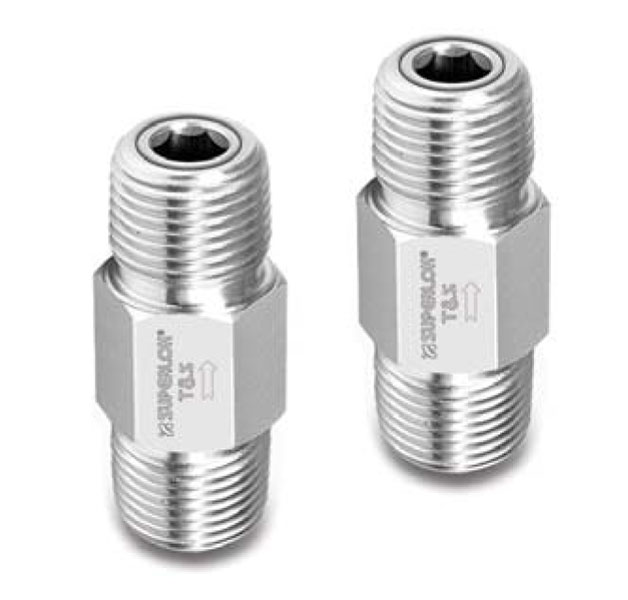

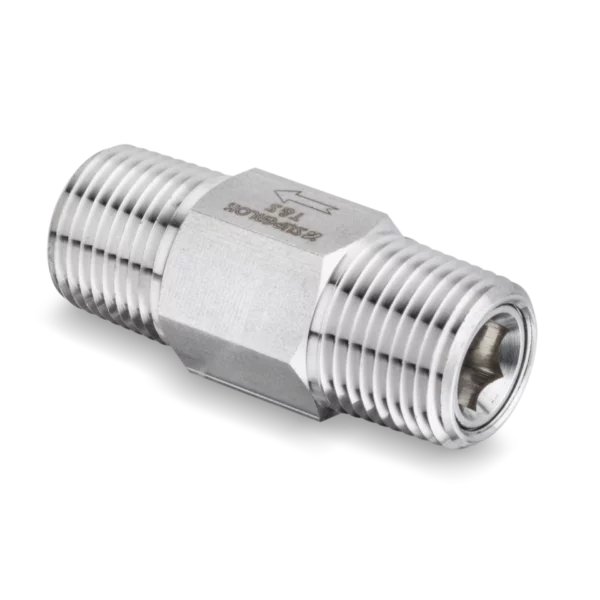

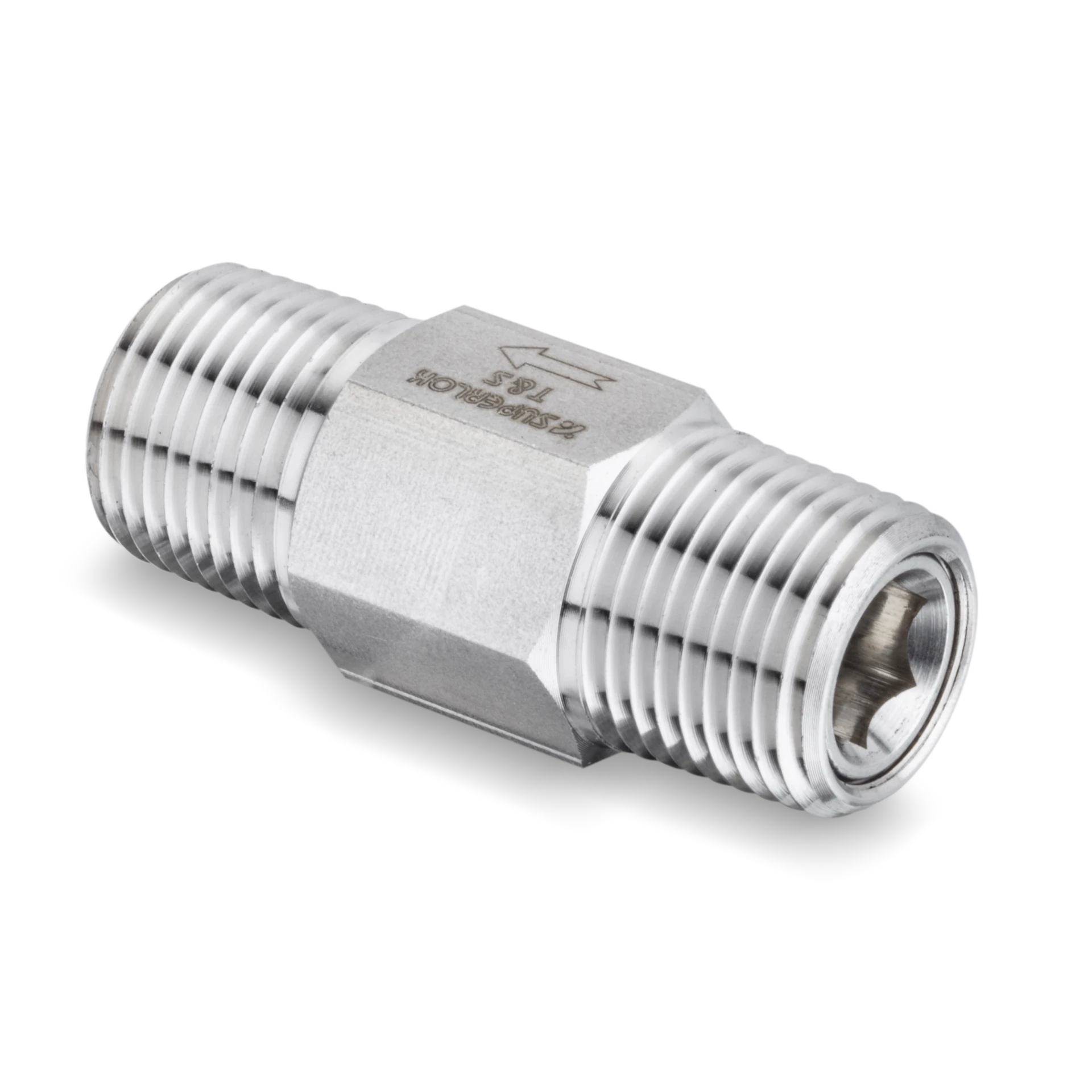

SOCV One Piece Check Valves
SOCV One Piece Check Valves
Access our complete line of SOCV One Piece Check Valves featuring high-pressure designs. Our selection includes valves rated up to 6,000 psig at 100?F with 316 stainless steel construction and fixed cracking pressure from 1/3 to 25 psig for your fluid system. Browse below to instantly request a quote or purchase the check valves with factory-tested reliability.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Back Pressure at 70 (20 ?C) Temperature | 206bar, 3000psig |
|---|---|
| Inch/Metric | Inch |
| Operating Pressure [Min] | 206bar, 3000psig |
| Superlok Part Type | Check Valve |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190?C, -10 to 375?F |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121?C, -10 to 250?F |
Available Sizes
SOCV1-M-4N-1/3P SOCV One Piece Check Valves
SOCV 1/4 in. Male National Pipe Taper (MNPT), #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
SOCV1-M-4N-1/3P-E SOCV One Piece Check Valves
SOCV 1/4 in. Male National Pipe Taper (MNPT), #1/3 psi Nominal Cracking Pressure Spring, E.P. O-Ring, 3000 psi Working Pressure One Piece Check Valve
SOCV1-M-4N-1P SOCV One Piece Check Valves
- Model: SOCV1-M-4N-1P (1/4" Male National Pipe Taper (MNPT) x 1/4" MNPT)
- Type: In-Line One-Piece Check Valve with Spring-Loaded Poppet
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Cracking Pressure: 1 psi nominal
- Pressure Rating: 3000 psi working pressure
- Finish: Machined one-piece body for compact, leak-tight installation
SOCV1-M-4N-5P SOCV One Piece Check Valves
SOCV 1/4 in. Male National Pipe Taper (MNPT), #5 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
SOCV1-M-4N-10P SOCV One Piece Check Valves
- Model: SOCV1-M-4N-10P (1/4" MNPT x 1/4" MNPT check valve)
- Type: Inline Check Valve (compact, one-piece body)
- Material: 316 Stainless Steel with FKM Seal
- Cracking Pressure: 10 PSI (0.69 bar)
- Pressure Rating: Up to 3000 PSIG (206 bar)
SOCV1-M-4N-15P-E SOCV One Piece Check Valves
SOCV 1/4 in. Male National Pipe Taper (MNPT), #15 psi Nominal Cracking Pressure Spring, E.P. O-Ring, 3000 psi Working Pressure One Piece Check Valve
SOCV1-M-4N-25P SOCV One Piece Check Valves
SOCV 1/4 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
SOCV3-M-8N-5P SOCV One Piece Check Valves
SOCV 1/2 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
SOCV3-M-8N-25P SOCV One Piece Check Valves
SOCV 1/2 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
SOCV4-MF-8N-1P SOCV One Piece Check Valves
SOCV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
