Two Valve Manifold – SM2V 2-Valve Manifold Valves

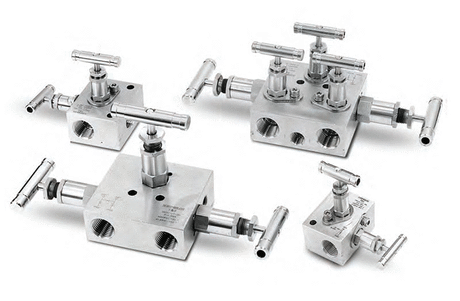

The Two Valve Manifold is a compact, high-performance valve system designed for precise flow control in pressure instruments. Built from 316 stainless steel, it withstands up to 6000 psi, ensuring exceptional durability in harsh environments. Featuring FNPT thread compatibility, it offers secure, leak-proof connections in oil & gas, chemical processing, and hydraulic systems. Its flange and remote mounting options provide flexible installation for pressure instruments and system maintenance.
Browse all Two Valve Manifold Valves below to find the ideal configuration for your system.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Orifice | 0.125in, 3.2mm |
| Superlok Part Type | Manifold Valve |
Available Sizes
SM2V-F-8N SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Horizontal Style, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
SM2V-F-8N-G SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packaging, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
SM2VD-F-8N SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Vertical Style, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
SM2VF-F-8N-G SM2V 2-Valve Manifold Valves
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Grafoil Packaging, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
