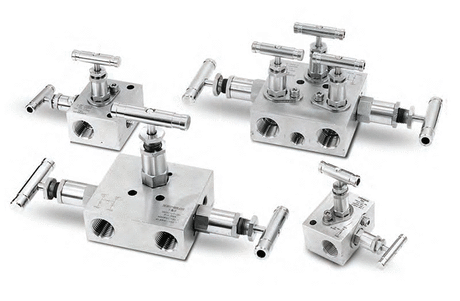

The Three Valve Manifold is a versatile instrument manifold valve designed to control, isolate, and equalize pressure in industrial applications. Rated for 6000 psi, it features PTFE packing for a leak-tight seal and 316 stainless steel construction for maximum corrosion resistance. With remote and direct mounting options, it is widely used in oil & gas, petrochemical, and process control industries. This manifold simplifies calibration and maintenance, making it an essential component for precision fluid control systems.

Browse all Three Valve Manifold Valves below for the right fit in your application.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18716 Category: Manifold Valves

Downloads

SM3V-3-Valve-Manifold-Valves.pdf

Click here for more info

Specifications

End Connections	Female National Pipe Thread (FNPT)Process Type
End Connections Process Size	1/2mm
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Superlok Part Type	Manifold Valve

Available Sizes

SM3V-F-8N SM3V 3-Valve Manifold Valves

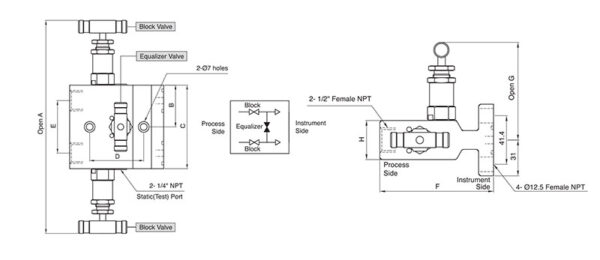

SM3V 1/2 in. Female National Pipe Taper (FNPT) Thread, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve

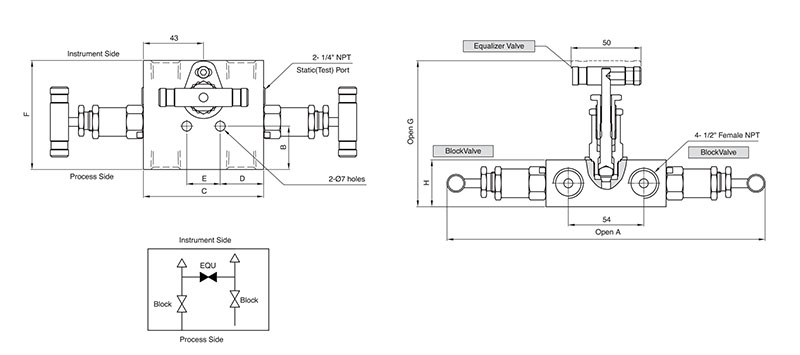

Dimension A	228.0mm
Dimension B	31.0mm
Dimension C	86.0mm
Dimension D	31.0mm
Dimension E	24.0mm
Dimension F	78.0mm
Dimension G	106.0mm
Dimension H	33.5mm

End Connections	Female National Pipe Thread (FNPT)Instrument Type
End Connections Instrument Size	1/2mm
End Connections Process Size	1/2mm
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Packaging Material	Array
Pressure Rating with Grafoil at 1200 (648 ?C)	bar, psig
Temperature Rating with Grafoil	?C, ?F

SM3V-F-8N-G SM3V 3-Valve Manifold Valves

SM3V 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packaging, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve

Dimension A	228.0mm
Dimension B	31.0mm
Dimension C	86.0mm
Dimension D	31.0mm
Dimension E	24.0mm
Dimension F	78.0mm
Dimension G	106.0mm
Dimension H	33.5mm

End Connections	Female National Pipe Thread (FNPT)Instrument Type
End Connections Instrument Size	1/2mm
End Connections Process Size	1/2mm
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Packaging Material	Grafoil
Pressure Rating with Grafoil at 1200 (648 ?C)	118bar, 1715psig
Temperature Rating with Grafoil	648?C, 1200?F

SM3VD-F-8N SM3V 3-Valve Manifold Valves

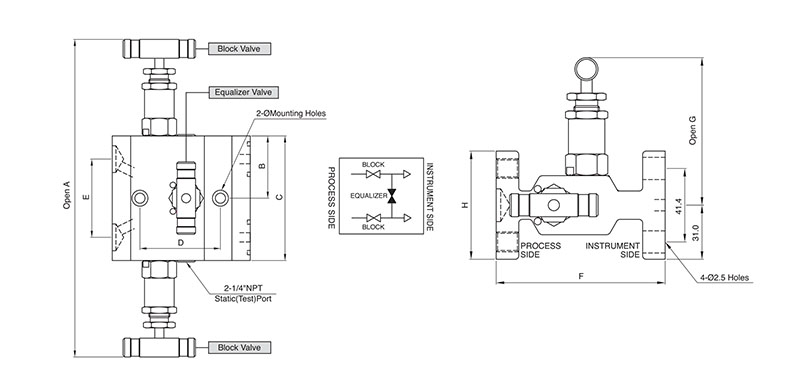

SM3V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Vertical Style , Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve

Dimension A	250.0mm
Dimension B	54.0mm
Dimension C	108.0mm
Dimension D	41.4mm
Dimension E	32.0mm
Dimension F	64.0mm
Dimension G	136.0mm
Dimension H	32.0mm

End Connections	FlangeInstrument Type
End Connections Instrument Size	mm
End Connections Process Size	1/2mm
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Packaging Material	Array
Pressure Rating with Grafoil at 1200 (648 ?C)	bar, psig
Temperature Rating with Grafoil	?C, ?F

SM3VF-F-8N SM3V 3-Valve Manifold Valves

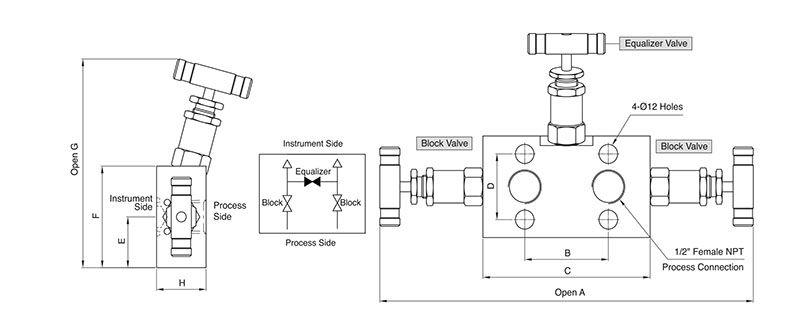

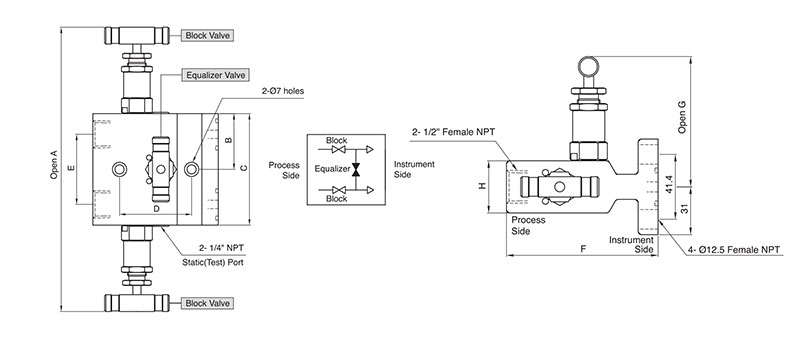

SM3V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Direct Mounting, 6000 psi Pressure Rating Valve Manifold Valve

Dimension A	228.0mm
Dimension B	43.0mm
Dimension C	86.0mm
Dimension D	55.6mm
Dimension E	54.0mm
Dimension F	97.0mm
Dimension G	87.7mm
Dimension H	31.8mm

End Connections	FlangeInstrument Type
End Connections Instrument Size	mm
End Connections Process Size	1/2mm
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Packaging Material	Array
Pressure Rating with Grafoil at 1200 (648 ?C)	bar, psig
Temperature Rating with Grafoil	?C, ?F

SM3VF-F-8N-G SM3V 3-Valve Manifold Valves

SM3V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Grafoil Packaging , Direct Mount Valve Manifold Valve
