SM3VD-F-8N
SM3V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Vertical Style , Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
Specifications
| End Connections | FlangeInstrument Type |
|---|---|
| End Connections Instrument Size | mm |
| End Connections Process Size | 1/2mm |
| Inch/Metric | Inch |
| Orifice | 0.250in, 6.4mm |
| Packaging Material | Array |
| Pressure Rating with Grafoil at 1200 (648 ?C) | bar, psig |
| Temperature Rating with Grafoil | ?C, ?F |
Dimensions
| Dimension A | 250.0mm |
|---|---|
| Dimension B | 54.0mm |
| Dimension C | 108.0mm |
| Dimension D | 41.4mm |
| Dimension E | 32.0mm |
| Dimension F | 64.0mm |
| Dimension G | 136.0mm |
| Dimension H | 32.0mm |
Description
(SM3VD-F-8N)
SM3V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Vertical Style , Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve

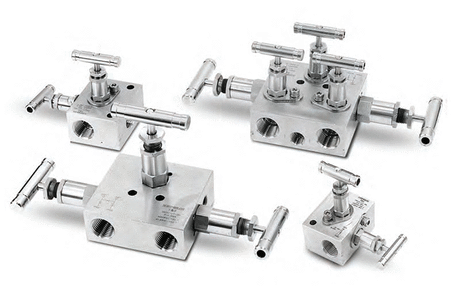

2-, 3-, and 5-valves Instrument manifolds valves Pressure Rating up to 6000 psig (413 bar) at 100 ?F(37 ?C) Temperature up to 1200 ?F (648 ?C) with optional Grafoil packing All 316 stainless steel construction with PTFE packing
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-V3NBF8-FL |
|---|
