Five Valve Manifold – SM5V 5-Valve Manifold Valves

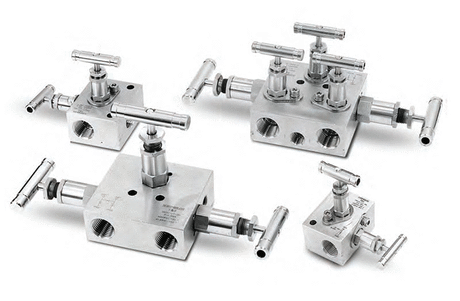

The Five Valve Manifold is engineered for advanced pressure instrument control in industrial applications. Capable of handling up to 6000 psi, it features stainless steel construction for superior durability. Designed for isolation, equalization, and venting, this manifold ensures precise flow control in high-pressure systems. It integrates flange and remote mounting options, making it suitable for oil & gas, chemical processing, and fluid measurement systems. Its leak-tight design enhances system reliability, minimizing downtime and maintenance.

Browse all Five Valve Manifold Valves below to get the right component for your system.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18722 Category: Manifold Valves

Downloads

SM5V-5-Valve-Manifold-Valves.pdf

Click here for more info

Specifications

Inch/Metric	Inch
Superlok Part Type	Manifold Valve

Available Sizes

SM5V-F-8N SM5V 5-Valve Manifold Valves

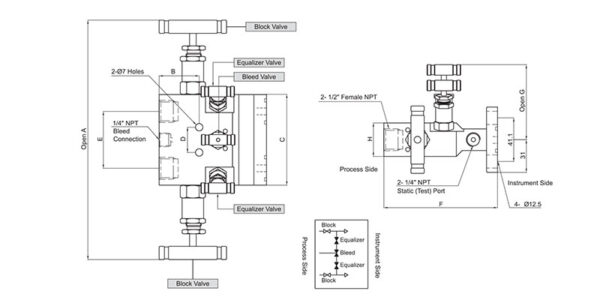

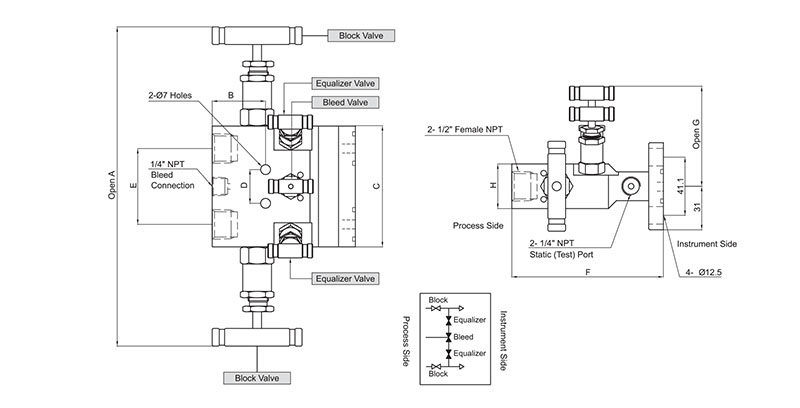

SM5V 1/2 in. Female National Pipe Taper (FNPT) Thread, Remote Mounting, 6000 psi Pressure Rating Valve Manifold Valve

Dimension A	228.0mm
Dimension B	32.0mm
Dimension C	86.0mm
Dimension D	31.0mm
Dimension E	24.0mm
Dimension F	86.0mm
Dimension G	85.9mm
Dimension H	33.5mm
Dimension I	mm

End Connections	Female National Pipe Thread (FNPT)Bleed Type, Female National Pipe Thread (FNPT)Instrument Type, Female National Pipe Thread (FNPT)Process Type
End Connections Bleed Size	1/4mm
End Connections Instrument Size	1/2mm
End Connections Process Size	1/2mm
Inch/Metric	Inch
Orifice	0.125in, 3.2mm
Packaging Material	Array
Pressure Rating with Grafoil at 1200 (648 ?C)	bar, psig
Temperature Rating with Grafoil	?C, ?F

SM5VD-F-8N-G SM5V 5-Valve Manifold Valves

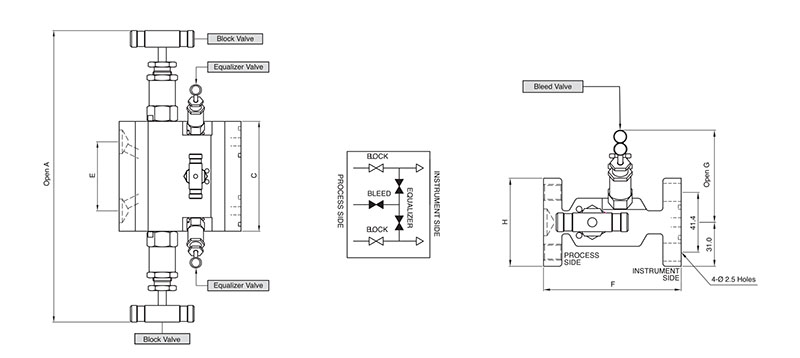

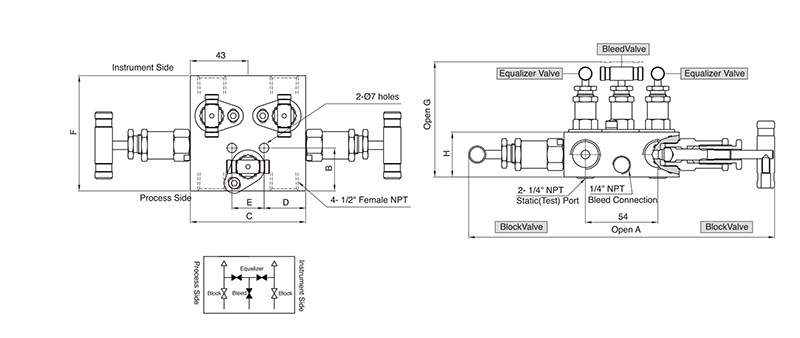

SM5V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Grafoil Packaging, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve

Dimension A	312.0mm
Dimension B	54.0mm
Dimension C	102.0mm
Dimension D	41.4mm
Dimension E	138.0mm
Dimension F	158.0mm
Dimension G	148.0mm
Dimension H	76.2mm
Dimension I	32.0mm

End Connections	Female National Pipe Thread (FNPT)Bleed Type, FlangeInstrument Type, Female National Pipe Thread (FNPT)Process Type
End Connections Bleed Size	1/4mm
End Connections Instrument Size	mm
End Connections Process Size	1/2mm
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Packaging Material	Grafoil
Pressure Rating with Grafoil at 1200 (648 ?C)	118bar, 1715psig
Temperature Rating with Grafoil	648?C, 1200?F

SM5VDF-SFS SM5V 5-Valve Manifold Valves

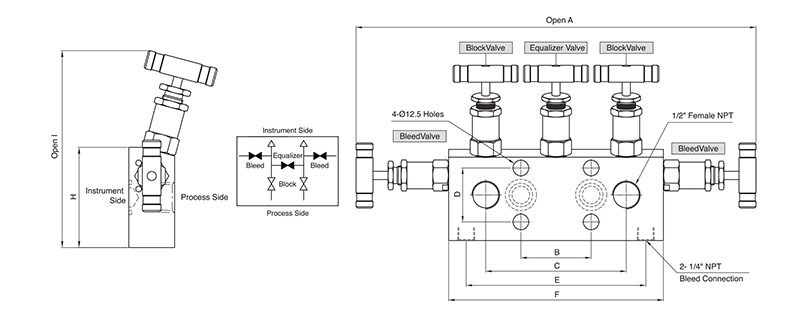

SM5V 1/2 in. Flange x Flange, Bolts and Gaskets, Direct Mount Valve Manifold Valve

Dimension A	mm
Dimension B	mm
Dimension C	mm
Dimension D	mm
Dimension E	mm
Dimension F	mm
Dimension G	mm
Dimension H	mm
Dimension I	mm

End Connections	Bleed Type, Instrument Type, Process Type
End Connections Bleed Size	mm
End Connections Instrument Size	mm
End Connections Process Size	mm
Inch/Metric	Inch
Orifice	in, mm
Packaging Material	Array
Pressure Rating with Grafoil at 1200 (648 ?C)	bar, psig
Temperature Rating with Grafoil	?C, ?F

SM5VF-F-8N-SFS SM5V 5-Valve Manifold Valves

Model: SM5VF-F-8N-SFS (5-valve manifold, 316 stainless steel)
Type: Direct-Mount 5-Valve Manifold (with flange and bolt/gasket set)
Connections: 1/2" FNPT x Flanged
Material: 316 Stainless Steel (corrosion-resistant alloy)
Pressure Rating: Up to 6,000 PSIG (413 bar)
Temperature Rating: Up to 1,200 °F (648 °C) with optional Grafoil packing
