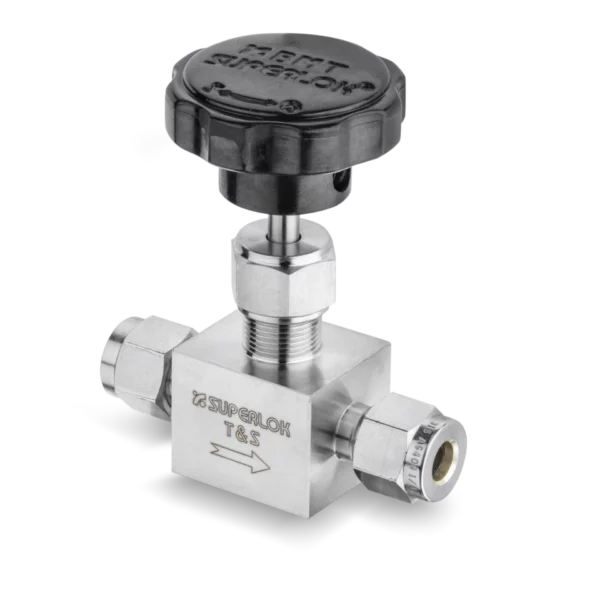

SBNV Needle Valves

Access our integral bonnet needle valve featuring durable bar stock construction and precision engineering. These specialized needle valves deliver optimal flow control with low operating torques and versatile connections. Each bonnet needle valve undergoes factory testing. Browse below to purchase or request a quote for your exact specifications.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18657 Category: Needle Valves

Downloads

SBNV-Needle-Valves.pdf

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Superlok Part Type	Needle Valve
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C

Available Sizes

SBNV1-F-4N SBNV Needle Valves

SBNV 1/4 in. Female National Pipe Taper (FNPT), -65 to 450 ?F Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve

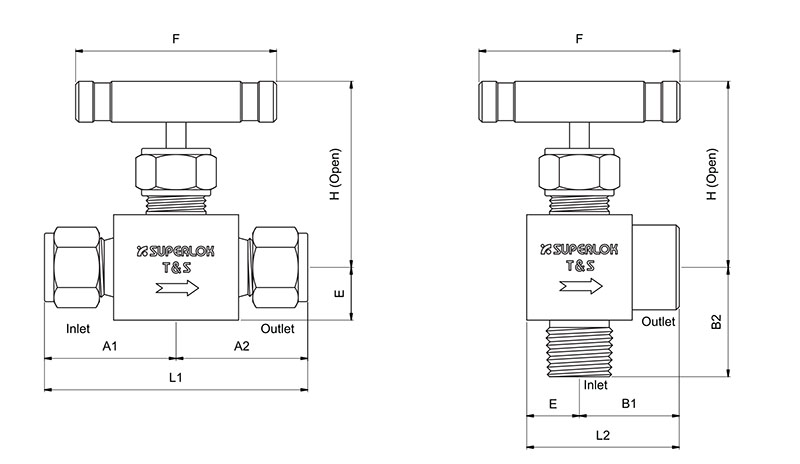

Dimension A1	23.8mm
Dimension A2	23.8mm
Dimension B1	25.4mm
Dimension B2	25.4mm
Dimension D	mm
Dimension E	11.1mm
Dimension F	45.0mm
Dimension H	51.0mm
Dimension L1	47.6mm
Dimension L2	36.5mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.37
End Size	44200in
End Size 2	44200in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	4.3mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315?C, 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	65 to 450?F

SBNV1-F-4N-MR SBNV Needle Valves

SBNV 1/4 in. Female National Pipe Taper (FNPT), -65 to 450 ?F Temperature Rating, Vee Tip, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Needle Valve

Dimension A1	23.8mm
Dimension A2	23.8mm
Dimension B1	25.4mm
Dimension B2	25.4mm
Dimension D	45.0mm
Dimension E	11.1mm
Dimension F	mm
Dimension H	51.0mm
Dimension L1	47.6mm
Dimension L2	36.5mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.37
End Size	44200in
End Size 2	44200in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	Up to 315?C, Up to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-65 to 450?F

SBNV1-MF-4N SBNV Needle Valves

SBNV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Female National Pipe Taper (FNPT), -65 F to 450 ?F Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve

Dimension A1	24.6mm
Dimension A2	23.6mm
Dimension B1	25.4mm
Dimension B2	26.2mm
Dimension D	mm
Dimension E	11.1mm
Dimension F	45.0mm
Dimension H	51.0mm
Dimension L1	48.4mm
Dimension L2	36.5mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.37
End Size	44200in
End Size 2	44200in
End Type	Male National Pipe Thread (MNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	4.3mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315?C, 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	65 to 450?F

SBNV1-S-4 SBNV Needle Valves

SBNV 1/4 in. Outside Diameter, -65 to 450 ?F Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve

Dimension A1	31.2mm
Dimension A2	31.2mm
Dimension B1	28.7mm
Dimension B2	29.7mm
Dimension D	mm
Dimension E	11.1mm
Dimension F	45.0mm
Dimension H	51.0mm
Dimension L1	62.4mm
Dimension L2	39.8mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.37
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	4.3mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315?C, 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	65 to 450?F

SBNV1-S-4-SS-KH SBNV Needle Valves

SBNV 1/4 in. Outside Diameter, Soft Stem Tip, Phenolic Handle, 6000 psi Pressure Rating Needle Valve

Dimension A1	31.2mm
Dimension A2	31.2mm
Dimension B1	28.7mm
Dimension B2	29.7mm
Dimension D	mm
Dimension E	11.1mm
Dimension F	45.0mm
Dimension H	51.0mm
Dimension L1	62.4mm
Dimension L2	39.8mm

Actuator Color	Black
Actuator Type	Phenolic Knob Handle
Cv Coefficient	0.37
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	4.3mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	413bar, 6000psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	-54 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315?C, 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	65 to 450?F

SBNV2-F-8N SBNV Needle Valves

SBNV 1/2 in. Female National Pipe Taper (FNPT), -65 to 450 ?F Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve

Dimension A1	32.0mm
Dimension A2	32.0mm
Dimension B1	31.8mm
Dimension B2	35.8mm
Dimension D	mm
Dimension E	16.8mm
Dimension F	64.0mm
Dimension H	63.0mm
Dimension L1	64.0mm
Dimension L2	48.6mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.73
End Size	44198in
End Size 2	44198in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	6.4mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315?C, 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	65 to 450?F

SBNV2-F-8N-MR SBNV Needle Valves

SBNV 1/2 in. Female National Pipe Taper (FNPT), -65 to 450 ?F Temperature Rating, Vee Tip, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Needle Valve

Dimension A1	32.0mm
Dimension A2	32.0mm
Dimension B1	31.8mm
Dimension B2	35.8mm
Dimension D	64.0mm
Dimension E	16.8mm
Dimension F	mm
Dimension H	63.0mm
Dimension L1	64.0mm
Dimension L2	48.6mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.73
End Size	44198in
End Size 2	44198in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	Up to 315?C, Up to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-65 to 450?F

SBNV2-MF-8N SBNV Needle Valves

SBNV 1/2 in. Male National Pipe Taper (MNPT) x 1/4 in. Female National Pipe Taper (FNPT), -65 F to 450 ?F Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve

Dimension A1	32.5mm
Dimension A2	32.5mm
Dimension B1	31.8mm
Dimension B2	35.8mm
Dimension D	mm
Dimension E	16.8mm
Dimension F	64.0mm
Dimension H	63.0mm
Dimension L1	64.5mm
Dimension L2	48.6mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.73
End Size	44198in
End Size 2	44198in
End Type	Male National Pipe Thread (MNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	6.4mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315?C, 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	65 to 450?F

SBNV2-S-6 SBNV Needle Valves

SBNV 3/8 in. Outside Diameter, -65 to 450 ?F Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve

Dimension A1	39.1mm
Dimension A2	39.1mm
Dimension B1	mm
Dimension B2	mm
Dimension D	mm
Dimension E	mm
Dimension F	mm
Dimension H	mm
Dimension L1	78.2mm
Dimension L2	mm

Actuator Color	Array
Actuator Type	Array
Cv Coefficient	0.73
End Size	44263in
End Size 2	44263in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6.4mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ?C) Temperature	bar, psig
Pressure Rating at 100 (38 ?C) Temperature	413bar, 6000psig
Temperature Rating (316 Stainless Steel)	?C, ?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315?C, 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	65 to 450?F

SBNV2-S-8 SBNV Needle Valves

SBNV 1/2 in. Outside Diameter, -65 to 450 ?F Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve

Dimension A1	41.9mm
Dimension A2	41.9mm
Dimension B1	mm
Dimension B2	mm
Dimension D	mm
Dimension E	mm
Dimension F	mm
Dimension H	mm
Dimension L1	83.8mm
Dimension L2	mm
