SINV Needle Valves
SINV Needle Valves

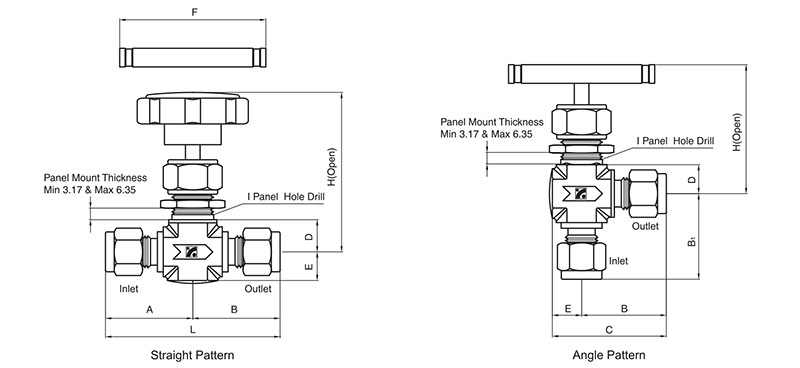

Access our SINV integral bonnet needle valve series featuring low-torque operation. Our selection of integral bonnet needle valves includes straight and angle patterns for your fluid system. Browse below to request a quote for the component you need.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Pressure Rating at 100 (38 ?C) Temperature | 345bar, 5000psig |
| Superlok Part Type | Needle Valve |
| Temperature Rating with Polyether Ether Ketone (PEEK) Packing | 315?C, 600?F |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232?C, -65 to 450?F |
Available Sizes
SINV1-F-2N-RS-KH SINV Needle Valves
SINV 1/8 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
SINV1-M-2N-A-RS SINV Needle Valves
SINV 1/8 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV1-S-2 SINV Needle Valves
SINV 1/8 in. Outside Diameter, Bar Handle, Vee Tip Stem, 5000 psi Pressure Rating Needle Valve
SINV1-S-2-RS SINV Needle Valves
SINV 1/8 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV2-M-4N-KH-A-RS-BRAS SINV Needle Valves
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Brass, 3000 psi Pressure Rating Needle Valve
SINV2-M-4N-KH-BRAS SINV Needle Valves
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Brass, 3000 psi Pressure Rating Needle Valve
SINV2-M-4N-RS SINV Needle Valves
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV2-M-4N-RS-KH SINV Needle Valves
SINV 1/4in. Male National Pipe Taper (MNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
SINV2-S-4-RS SINV Needle Valves
SINV 1/4 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV2-S-4-RS-KH SINV Needle Valves
SINV 1/4 in. Outside Diameter, Phenolic Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV2-S-4-RS-KH-PE SINV Needle Valves
SINV 1/4 in. Outside Diameter, Phenolic Handle, Peek Seats, Regulating Stem Needle Valve
SINV2-S-4-RS-MR SINV Needle Valves
SINV 1/4 in. Outside Diameter, Bar Handle, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve
SINV2-S-4-SS-KH SINV Needle Valves
SINV 1/4 in. Outside Diameter, Soft Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
SINV3-F-4N-RS SINV Needle Valves
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV3-F-4N-RS-KH SINV Needle Valves
SINV 1/4 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
SINV3-F-4N-RS-MR SINV Needle Valves
SINV 1/4 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve
SINV3-MF-4N-RS SINV Needle Valves
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
SINV3-S-6-RS SINV Needle Valves
- Model: SINV3-S-6-RS (3/8" Tube OD Needle Valve)
- Type: Straight Needle Valve with Regulating Stem
- Material: 316 Stainless Steel, Alloy 400, Brass
- Pressure Rating: Up to 5000 PSIG
- Design: Bar handle, panel-mountable, precision metering stem
SINV3-S-6-RS-KH SINV Needle Valves
SINV 3/8 in. Outside Diameter, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
SINV3-S-6-RS-MR SINV Needle Valves
SINV 3/8 in. Outside Diameter, Regulating Stem, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve
SINV3-S-8-RS SINV Needle Valves
- Model: SINV3-S-8-RS (1/2" Female National Pipe Taper (FNPT) inlet and outlet)
- Type: Inline Hygienic Needle Valve with Bar Handle and Regulating Stem
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: 5000 psi working pressure (hydro-tested)
- Stem Type: Regulating stem with non-rotating tip
- Cv Coefficient: 0.75
- Finish: Precision-machined body, passivated for hygienic service
SINV3-S-8-RS-KH-PE SINV Needle Valves
- Model: SINV3-S-8-RS-KH-PE (1/2" tube OD, PEEK seat, phenolic handle)
- Type: Needle Valve (precision throttling and shutoff valve)
- Body Material: 316 Stainless Steel, Alloy 400, Brass
- Connection Type: 1/2" Tube OD
- Cv Coefficient: 0.75
- Pressure Rating: 5000 PSIG
SINV4-F-6N-RS SINV Needle Valves
SINV 3/8 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV4-F-8N-RS SINV Needle Valves
SINV 1/2 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV4-MF-8N-RS SINV Needle Valves
SINV 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
SINV4-S-8-RS SINV Needle Valves
SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
SINV4-S-8-RS-KH-A-PE SINV Needle Valves
SINV 1/2 in. Outside Diameter, Angle Pattern, Peek Seats, Phenolic Handle Needle Valve
SINV4-S-8-RS-KH-PE SINV Needle Valves
SINV 1/2 in. Outside Diameter, Peek Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
SINV4-S-12-RS SINV Needle Valves
SINV 3/4 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
