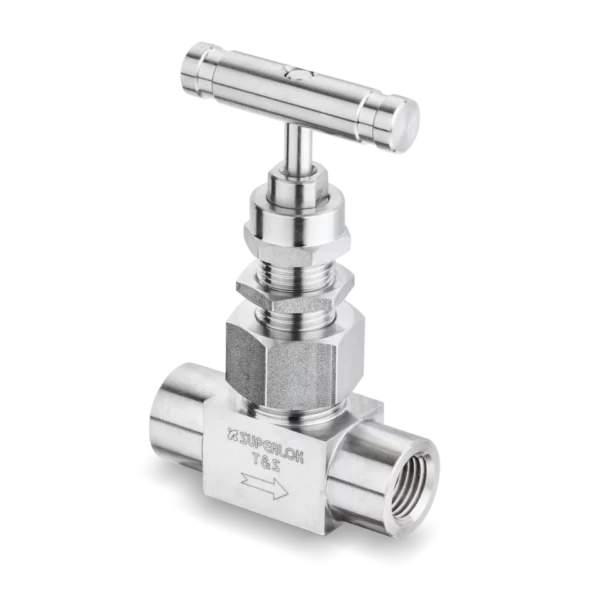

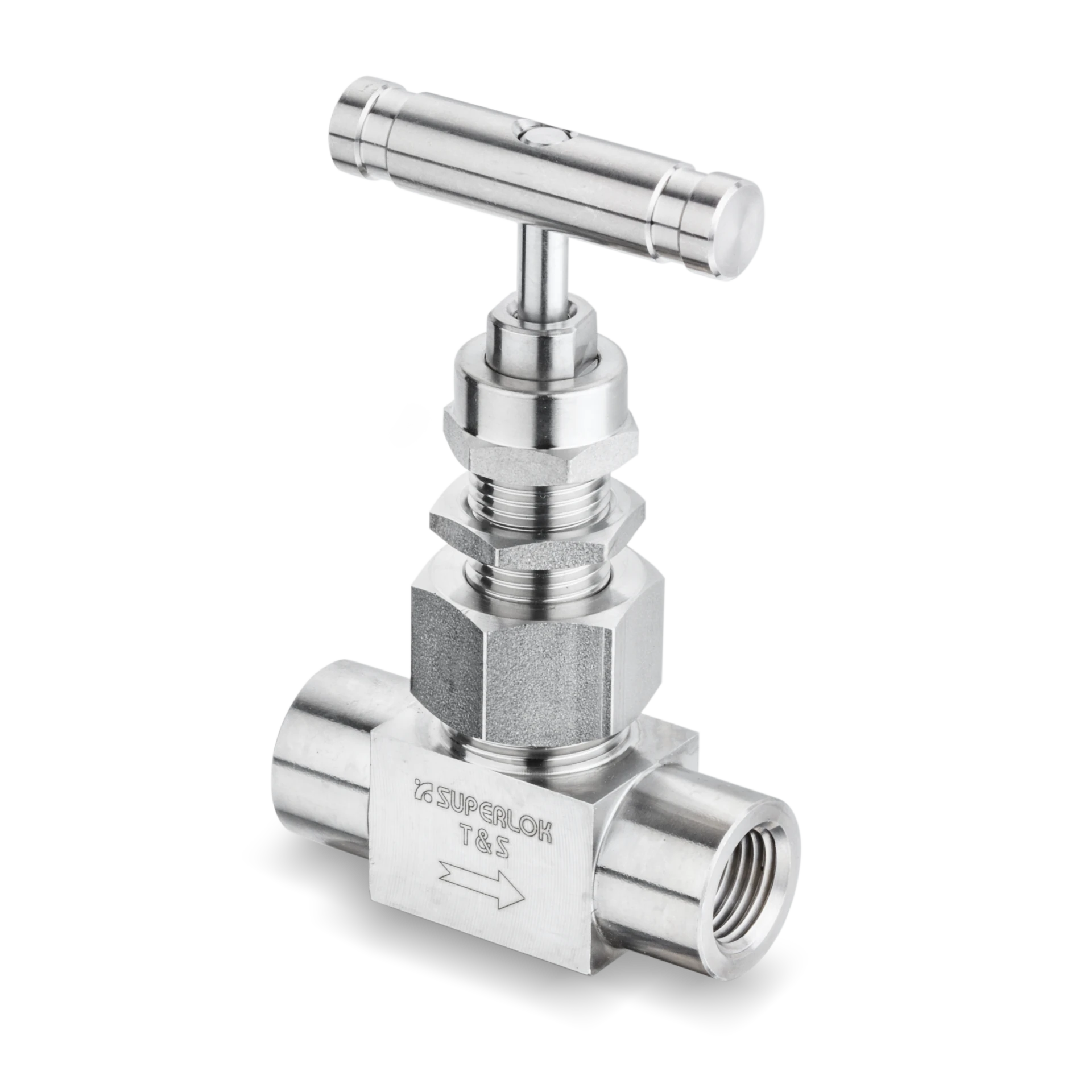

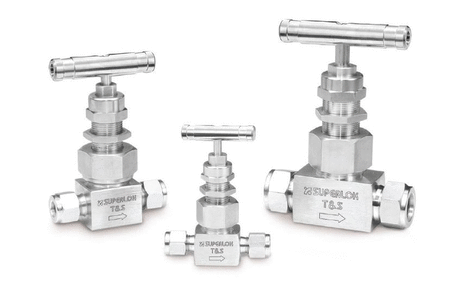

SUNV Union Bonnet Needle Valves

Union Bonnet Needle Valve – SUNV Union Bonnet Needle Valves

Union Bonnet Needle Valves provide superior sealing and flow control for high-pressure systems. Designed with a secure union bonnet, these valves minimize leakage and enhance durability in demanding industrial applications. The SUNV Union Bonnet Needle Valve features a straight-through or angle flow pattern, a non-rotating vee stem tip, and multiple stem configurations for precise metering. These valves are ideal for applications in oil and gas, chemical processing, and instrumentation, where high-pressure, leak-free performance is essential. Built from corrosion-resistant materials, they ensure long service life and reliability in harsh environments.

Browse all Union Bonnet Needle Valves below to find the perfect fit for your fluid system.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18673 Category: Needle Valves

Downloads

SUNV-Union-Bonnet-Needle-Valves.pdf

Click here for more info

Specifications

Inch/Metric	Inch
Superlok Part Type	Needle Valve
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F

Available Sizes

SUNV1-F-4N SUNV Union Bonnet Needle Valves

SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

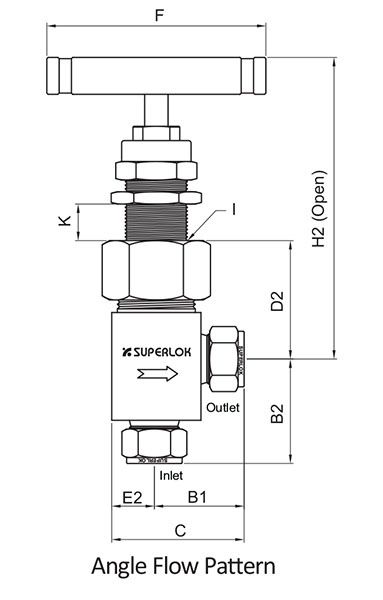

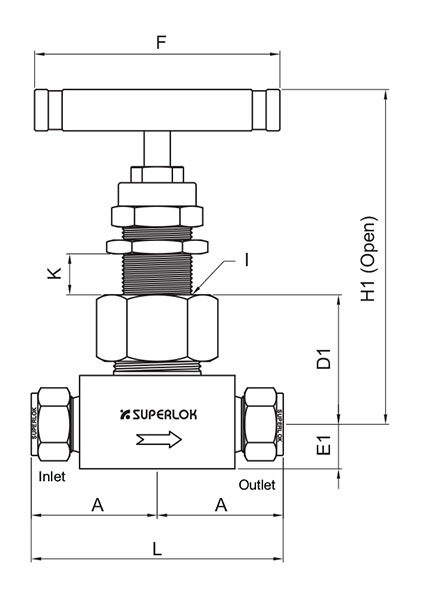

Dimension A	26.2mm
Dimension B1	23.0mm
Dimension B2	25.4mm
Dimension C	32.6mm
Dimension D1	27.8mm
Dimension D2	32.6mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	77.8mm
Dimension H2	82.6mm
Dimension I	15.1mm
Dimension L	52.4mm

Cv Coefficient	2.2000000000000002
End Size	44200in
End Size 2	44200in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C, 65 to 450?F

SUNV1-F-4N-GR SUNV Union Bonnet Needle Valves

SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	26.2mm
Dimension B1	23.0mm
Dimension B2	25.4mm
Dimension C	32.6mm
Dimension D1	27.8mm
Dimension D2	32.6mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	121.5mm
Dimension H2	126.2mm
Dimension I	15.1mm
Dimension L	52.4mm

Cv Coefficient	2.2000000000000002
End Size	44198in
End Size 2	44198in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV1-S-4 SUNV Union Bonnet Needle Valves

SUNV 1/4 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	31.0mm
Dimension B1	29.4mm
Dimension B2	37.3mm
Dimension C	38.9mm
Dimension D1	27.8mm
Dimension D2	27.8mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	77.8mm
Dimension H2	77.8mm
Dimension I	15.1mm
Dimension L	62.0mm

Cv Coefficient	0.35
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C, 65 to 450?F

SUNV1-S-4-GR SUNV Union Bonnet Needle Valves

SUNV 1/4 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	31.0mm
Dimension B1	29.4mm
Dimension B2	37.3mm
Dimension C	38.9mm
Dimension D1	27.8mm
Dimension D2	27.8mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	77.8mm
Dimension H2	77.8mm
Dimension I	15.1mm
Dimension L	62.0mm

Cv Coefficient	0.35
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV2-S-6 SUNV Union Bonnet Needle Valves

Model: SUNV2-S-6 (3/8" tube OD needle valve, 316 stainless steel)
Type: Union Bonnet Needle Valve (straight pattern)
Body Material: 316 Stainless Steel, Alloy 400
Cv Coefficient: 0.86
Packing: PTFE (Polytetrafluoroethylene)
Working Pressure: 6000 PSIG

Dimension A	36.5mm
Dimension B1	32.5mm
Dimension B2	42.9mm
Dimension C	45.3mm
Dimension D1	34.1mm
Dimension D2	31.0mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	15.9mm
Dimension L	73.0mm

Cv Coefficient	0.86
End Size	44263in
End Size 2	44263in
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C, 65 to 450?F

SUNV2-S-6-GR SUNV Union Bonnet Needle Valves

SUNV 3/8 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	36.5mm
Dimension B1	32.5mm
Dimension B2	42.9mm
Dimension C	45.3mm
Dimension D1	34.1mm
Dimension D2	31.0mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	15.9mm
Dimension L	73.0mm

Cv Coefficient	0.86
End Size	44263in
End Size 2	44263in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV2-S-8 SUNV Union Bonnet Needle Valves

SUNV 1/2 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	38.9mm
Dimension B1	34.9mm
Dimension B2	42.1mm
Dimension C	47.6mm
Dimension D1	34.1mm
Dimension D2	37.3mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	15.9mm
Dimension L	77.8mm

Cv Coefficient	0.86
End Size	44198in
End Size 2	44198in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C, 65 to 450?F

SUNV2-S-8-GR SUNV Union Bonnet Needle Valves

SUNV 1/2 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	38.9mm
Dimension B1	34.9mm
Dimension B2	42.1mm
Dimension C	47.6mm
Dimension D1	34.1mm
Dimension D2	37.3mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	26.2mm
Dimension L	77.8mm

Cv Coefficient	2.2000000000000002
End Size	44198in
End Size 2	44198in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV3-F-8N SUNV Union Bonnet Needle Valves

SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	39.7mm
Dimension B1	33.3mm
Dimension B2	39.7mm
Dimension C	50.8mm
Dimension D1	46.1mm
Dimension D2	50.8mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	123.9mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	79.4mm

Cv Coefficient	2.2000000000000002
End Size	44198in
End Size 2	44198in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C, 65 to 450?F

SUNV3-F-8N-GR SUNV Union Bonnet Needle Valves

SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	39.7mm
Dimension B1	33.3mm
Dimension B2	39.7mm
Dimension C	50.8mm
Dimension D1	46.1mm
Dimension D2	50.8mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	129.4mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	79.4mm

Cv Coefficient	2.2000000000000002
End Size	44259in
End Size 2	44259in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV3-F-12N SUNV Union Bonnet Needle Valves

SUNV 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	41.3mm
Dimension B1	mm
Dimension B2	mm
Dimension C	mm
Dimension D1	48.4mm
Dimension D2	mm
Dimension E1	19.9mm
Dimension E2	mm
Dimension F	89.0mm
Dimension H1	mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	82.6mm

Cv Coefficient	2.2000000000000002
End Size	44259in
End Size 2	44259in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C, 65 to 450?F

SUNV3-F-16N SUNV Union Bonnet Needle Valves

SUNV 1 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	46.0mm
Dimension B1	mm
Dimension B2	mm
Dimension C	mm
Dimension D1	54.0mm
Dimension D2	mm
Dimension E1	25.4mm
Dimension E2	mm
Dimension F	89.0mm
Dimension H1	mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	92.1mm

Cv Coefficient	2.2000000000000002
End Size	1in
End Size 2	1in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232?C, 65 to 450?F

SUNV3-MF-8N SUNV Union Bonnet Needle Valves

SUNV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	39.7mm
Dimension B1	33.3mm
Dimension B2	39.7mm
Dimension C	50.8mm
Dimension D1	46.0mm
Dimension D2	50.8mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	121.5mm
Dimension H2	126.2mm
Dimension I	26.2mm
Dimension L	79.4mm

Cv Coefficient	0.35
End Size	44259in
End Size 2	44259in
End Type	Male National Pipe Thread (MNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV3-MF-12N SUNV Union Bonnet Needle Valves

SUNV 3/4 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Dimension A	41.3mm
Dimension B1	mm
Dimension B2	mm
Dimension C	mm
Dimension D1	48.4mm
Dimension D2	mm
Dimension E1	25.4mm
Dimension E2	mm
Dimension F	89.0mm
Dimension H1	123.9mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	82.6mm

Cv Coefficient	0.35
End Size	44200in
End Size 2	44200in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV3-S-8-PE SUNV Union Bonnet Needle Valves

SUNV 1/2 in. Outside Diameter, Peek Packing, -65 to 600 ?F Temperature Rating, 6000 psi Union Bonnet Needle Valve

Dimension A	50.0mm
Dimension B1	43.7mm
Dimension B2	53.2mm
Dimension C	61.1mm
Dimension D1	46.0mm
Dimension D2	47.6mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	121.5mm
Dimension H2	123.1mm
Dimension I	26.2mm
Dimension L	100.0mm

Cv Coefficient	2.2000000000000002
End Size	1in
End Size 2	1in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648?C, -65 to 1200?F
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93?C, -65 to 200?F
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315?C, -65 to 600?F
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	?C, ?F

SUNV3-S-16 SUNV Union Bonnet Needle Valves

SUNV 1 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
