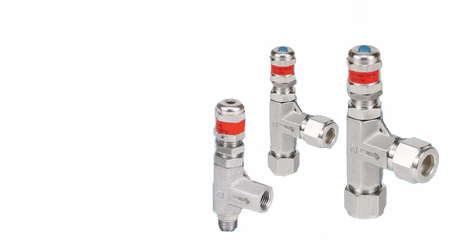

SRVL Low Pressure Relief Valves

Low Pressure Relief Valve – SRVL Low Pressure Relief Valves

The Low Pressure Relief Valve is a crucial safety component in fluid systems, designed to protect against overpressure by automatically releasing excess pressure at predetermined thresholds. These valves ensure consistent pressure management in applications such as HVAC systems, pneumatic circuits, and industrial gas control. Engineered for durability, they come with adjustable set points and lock wire features for enhanced security. The SRVL Low Pressure Relief Valves are built with high-grade materials to withstand demanding environments.

Browse all Low Pressure Relief Valves below to find the ideal solution for your application.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18580 Category: Relief Valves

Click here for more info

Specifications

Cracking Pressure Range	0.69 to 17.2bar, 10.0 to 250psig
Inch/Metric	Inch
Operating Pressure [Max]	20.6bar, 300psig
Orifice	4.8mm
Superlok Part Type	High Pressure Relief Valves

Available Sizes

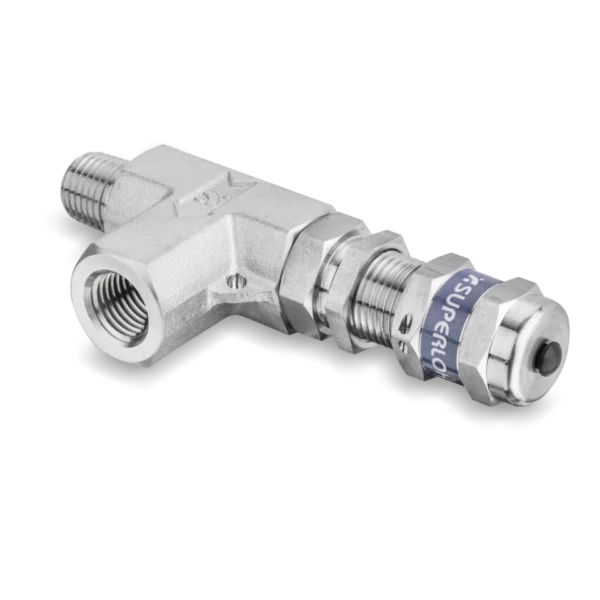

SRVL-MF-4N SRVL Low Pressure Relief Valves

SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve

Dimension H	99.5mm
Dimension L1	30.0mm
Dimension L2	32.2mm

SRVL-MF-4N-KZ SRVL Low Pressure Relief Valves

SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, FFKM (Perfluoroelastomer) O-Ring, 300 psi Low Pressure Relief Valve

Dimension H	99.5mm
Dimension L1	30.0mm
Dimension L2	32.2mm

SRVL-MF-4N-N SRVL Low Pressure Relief Valves

SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve

Dimension H	99.5mm
Dimension L1	30.0mm
Dimension L2	32.2mm

SRVL-MF-8N SRVL Low Pressure Relief Valves

Model: SRVL-MF-8N (1/2" MNPT x 1/2" FNPT, 316 stainless steel)
Type: Low-Pressure Relief Valve
Material: 316 Stainless Steel (corrosion-resistant alloy)
Cracking Pressure Range: 10 to 250 PSIG (0.69 to 17.2 bar)
Max Operating Pressure: 300 PSIG
End Connections: 1/2" Male NPT x 1/2" Female NPT

Dimension H	103.0mm
Dimension L1	38.0mm
Dimension L2	35.7mm

SRVL-MF-8N-N SRVL Low Pressure Relief Valves

SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve

Dimension H	103.0mm
Dimension L1	38.0mm
Dimension L2	35.7mm

SRVL-S-4 SRVL Low Pressure Relief Valves

SRVL 1/4 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve

Dimension H	104.6mm
Dimension L1	38.7mm
Dimension L2	37.3mm

SRVL-S-4-N SRVL Low Pressure Relief Valves

SRVL 1/4 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve

Dimension H	104.6mm
Dimension L1	38.7mm
Dimension L2	37.3mm

SRVL-S-6 SRVL Low Pressure Relief Valves

SRVL 3/8 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve

Dimension H	111.7mm
Dimension L1	44.4mm
Dimension L2	44.4mm

SRVL-S-6-N SRVL Low Pressure Relief Valves

SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve

Dimension H	111.7mm
Dimension L1	44.4mm
Dimension L2	44.4mm

SRVL-S-8 SRVL Low Pressure Relief Valves

SRVL 1/2 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve

Cracking Pressure Range	0.69 to 17.2bar, 10.0 to 250psig
End Size	44200mm
End Size 2	44200mm
End Type	Male National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Pressure [Max]	20.6bar, 300psig
Orifice	4.8mm

Dimension H	114.0mm
Dimension L1	46.7mm
Dimension L2	46.7mm
