SPUV-S-8-UT
SPUV 1/2 in. Outside Diameter, 6000 psi Pressure Rating T-Type Inlet Purge Valve
Specifications
| End Size | 44198mm |
|---|---|
| End Type | Female National Pipe Thread (FNPT) |
| Inch/Metric | Inch |
| Pressure Rating 316 Stainless Steel at -65 (-53 ?C) to 100 (37 ?C) | 275bar |
| Pressure Rating at 100?F (38?C ) | 27bar, 4000psig |
| Temperature Rating | -65 to 600?C, -54 to 315?F |
| Working Pressure at -65 (-53 ?C) to 100 ? F(37 ?C) Temperature | 4000psig |
| Working Pressure at 150 (65 ?C) Temperature | 256bar, 3720psig |
| Working Pressure at 200 (93 ?C) Temperature | 337bar, 3440psig |
| Working Pressure at 300 (148 ?C) Temperature | 213bar, 3105psig |
| Working Pressure at 350 (176 ?C) Temperature | 2975psig |
| Working Pressure at 350(176 ?C) Temperature | 204bar |
| Working Pressure at 400 (204 ?C) Temperature | 196bar, 850psig |
| Working Pressure at 450 (232 ?C) Temperature | 189bar, 2750psig |
| Working Pressure at 500 (260 ?C) Temperature | 182bar, 2650psig |
| Working Pressure at 600 (315 ?C) Temperature | 172bar, 2500psig |
Dimensions
| Dimension A | 2.82in, 71.6mm |
|---|---|
| Dimension H | 0.81in, 20.6mm |
| Dimension L | 1.61in, 41.0mm |
Description
(SPUV-S-8-UT)

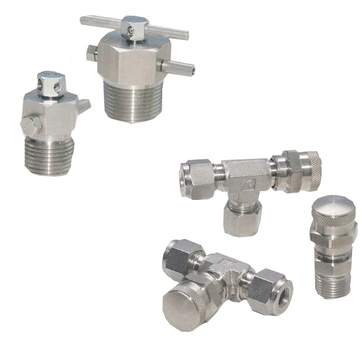

SPUV 1/2 in. Outside Diameter, 6000 psi Pressure Rating T-Type Inlet Purge Valve
Compact for convenient installation. Vent hole bleeds excess liquid or gas from system lines. Cap is crimped to valve body to prevent accidental disassembly. Variety of end connections; Superlok? tube fittings, NPT and ISO threads.
