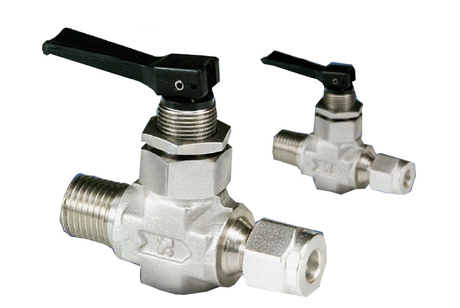

STV 1/4 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve

SKU: STV2A-S-4 Category:
Downloads
Click here for more info
Add to quote
Specifications
End Size44200in
End Size 244200in
End TypeArray
End Type 2Array
Flow Coefficient0.2
Inch/MetricInch
Operating Temperature [Max]93?C, 200?F
Operating Temperature [Min]-28?C, -20?F
Orifice0.125in, 3.2mm
Pressure [Max]20.6bar, 300psig
Dimensions
STV2A-S-4
Dimension A57.4mm
Dimension B28.7mm
Dimension B128.7mm
Dimension C38.1mm
Dimension D21.8mm
Dimension E9.5mm
Dimension G13.5mm
Dimension H71.4mm
Description

(STV2A-S-4)

STV 1/4 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve

Compact design. Quick acting. Orifice sizes from 0.080 to 0.250 in.(2.0 to 6.4 mm). Flow coefficients (Cv) from 0.11 to 0.70. Straight, angle flow patterns. Superlok? tube fitting, male and female NPT, and Combination of end connections. Each and every valve is tested at the factory.

Compatibility
This part may be used in place of the following parts from other manufacturers:
Swagelok®SS-1GS4-A
