SGC 4-8G

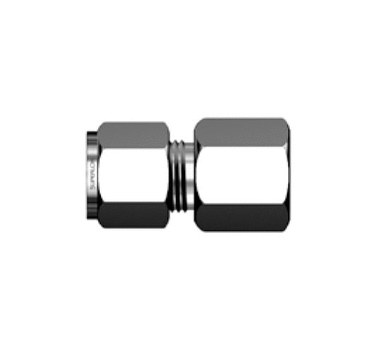

SGC 1/4 in. Tube Outside Diameter D x 1/2 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector
Specifications
| End Size | 44198in |
|---|---|
| End Type | International Standardization of Organization (ISO) Parallel Thread |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/4in, mm |
| Width Across Flats h | 1-1/16in, mm |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 36.07mm |
| Dimension I1 | 18.80mm |
| Dimension I2 | 24.90mm |
| Dimension L | 43.43mm |
| Dimension d1 | 6.60mm |
| Dimension d [Min] | 4.82mm |
Description
(SGC 4-8G)
SGC 1/4 in. Tube Outside Diameter D x 1/2 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-400-7-8RG |
|---|---|
| Parker (Alok)® | 4FSC8GC |
| Hy-Lok® | CGC 4-8GG |
| Ham-Let (Let-Lok)® | 766LG 1/4 X 1/2 |
| Hoke (Gyrolok)® | 4CF8EZ |
| Dk-Lok® | DCF4-8GG |
