Specifications
| Air Flow at Inlet Pressure 5 psig (0.34 bar) | 5.1ft?/min |
|---|---|
| Air Flow at Inlet Pressure 10 psig (0.34 bar) | 2.4ft?/min |
| Air Flow at Inlet Pressure 15 psig (1.0 bar) | 15ft?/min |
| Effective Filtration Area | 2in?, 1280mm? |
| End Connection | Inlet, Outlet |
| Inch/Metric | Inch |
| Inlet Size | 44263in |
| Nominal Size | 60?m |
| Operating Pressure [Max] | 0.34,0.68,1.0bar, 5,10,15psig |
| Orifice | 7.1mm |
| Outlet Size | 44263in |
| Pore Size Range | 50 to 75?m |
| Pressure Drop | 0.68,3.4,6.8bar, 10,50,100psig |
| Water Flow at Pressure Drop 10 psig (0.68 bar) | 0.26700000000000002ft?/min |
| Water Flow at Pressure Drop 50 psig (3.4 bar) | 0.89600000000000002ft?/min |
| Water Flow at Pressure Drop 100 psig (6.8 bar) | 1.337ft?/min |
| Working Pressure at -20?F (-28 ?C) to 100 (37 ?C) Temperature | 172bar, 2500psig |
| Working Pressure at 200 (93 ?C) Temperature | 148bar, 2150psig |
| Working Pressure at 300 (148 ?C) Temperature | 133bar, 1940psig |
| Working Pressure at 400 (204 ?C) Temperature | 122bar, 1780psig |
| Working Pressure at 500 (260 ?C) Temperature | 114bar, 1660psig |
| Working Pressure at 600 (315 ?C) Temperature | 107bar, 1560psig |
| Working Pressure at 650 (343 ?C) Temperature | 106bar, 1540psig |
| Working Pressure at 700 (371 ?C) Temperature | 103bar, 1500psig |
| Working Pressure at 750 (398 ?C) Temperature | 100bar, 1460psig |
| Working Pressure at 800 (426 ?C) Temperature | 99.2bar, 1440psig |
| Working Pressure at 850 (454 ?C) Temperature | 97.1bar, 1410psig |
Dimensions
| Dimension H | 25.4mm |
|---|---|
| Dimension I | 43.2mm |
| Dimension L | 81.8mm |
Description
(SIF3S6-60)

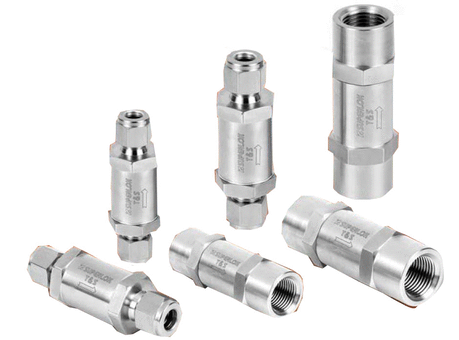

SIF 3/8 in. Outside Diameter, 60 Micron Inlet Inline Filter
Remove system particulate contaminants. Inline filters are for use where space is limited. Replaceable filter element. Maximum operating pressure : 3000 psi at 70 ?F (21 ?C) Operating temperature range : -20 ?F to 900 ?F (-28 ?C to 482 ?C ) with SS316 body 1/8 to 1/2 in. and 3 to 10 mm end connections.
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-6F-60 |
|---|
